Traffic Vehicle Loop Detector Access Control Inductive Single Channel PD132 240V 5A

China Traffic Vehicle Loop Detector Access Control Inductive Single Channel PD132 240V 5A supplier
Traffic Vehicle Loop Detector Access Control Inductive Single Channel PD132 240V 5A supplier Traffic Vehicle Loop Detector Access Control Inductive Single Channel PD132 240V 5A supplier Traffic Vehicle Loop Detector Access Control Inductive Single Channel PD132 240V 5A supplier Traffic Vehicle Loop Detector Access Control Inductive Single Channel PD132 240V 5A supplier Traffic Vehicle Loop Detector Access Control Inductive Single Channel PD132 240V 5A supplier

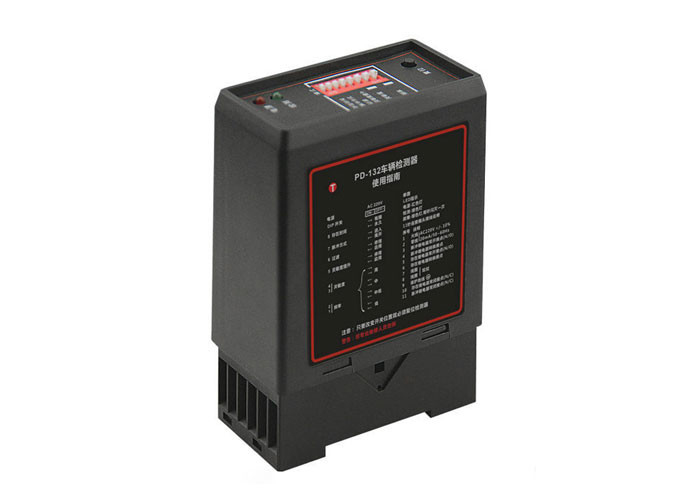

Large Image :  Traffic Vehicle Loop Detector Access Control Inductive Single Channel PD132 240V 5A

Product Details:

Place of Origin: Guangdong, China
Brand Name: SINOAMTIC
Certification: CE certificate
Model Number: PD-132

Payment & Shipping Terms:

Minimum Order Quantity: 10 pieces
Price: negotiable
Packaging Details: Neutral Carton box
Delivery Time: 2-5 working days after payment received
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 3,0000pcs per month
Contact Now
Detailed Product Description
Frequency Range: 20 KHz To 170 KHz Reaction Time: 100ms
Output Relays: 240V/5A Warranty: 1 Year
Voltage Available: 220V, 110V, 24V, 12V Loop Connection Wiring: Maximum Length 200 Meters Twisted At Least 20 Times Per Meter
Operating Temperature: -20°C To +65°C

Traffic Vehicle access Control Inductive Single Channel Vehicle Loop Detector PD132



Loop Detector Application:



PD132 single loop detector is used for wherever vehicles have to be detected , for example for monitoring and safe-guarding accessways or for counting vehicles. The output signal can be used for controlling door and gate drive mechanisms, operating barriers, controlling traffic light systems or activating card dispensers in parking lots . PD132 has two-way output relays , one is unlimited output when the loop is temporarily covered , while the other is multi-mode that can be set by users .



Traffic Vehicle Loop Detector Access Control Inductive Single Channel PD132 240V 5A



Main Features:



1) Reset Switch : The reset switch enables the detector to be manually reset during commissioning and testing . This results in the detector re-tuning the sensing loop and becoming ready for vehicle detection ;

2) Selectable Pulse Time : This feature sets the length of time that the pulse relay will be energized for 1 Second or 0.5 Seconds ;

3) Pulse Relay Selection : The Pulse Relay may be configured to energize on detection of a vehicle or when the vehicle leaves the loop ;

4) Sensitivity Boost : This feature sets the undetect level to maximum sensitivity and is used to prevent loss of detection of high-bed vehicles ;

5) Switch Selectable Sensibility : 4 sensitivity setting are available on the switches to allow flexibility in configuration ;

6) Switch Selectable Frequency : 4 frequency settings are available to prevent cross-talk between adjacent loops ;

7) Filter Option : This option is used to provide a delay between detection of the vehicle and switchiing of the output relay . This relay is normally used to prevent false detection of small or fast moving objects ;

8) Permanent Presence Option : This feature ensure detection of the vehicle will be maintained when the vehicle is parked over the loop for extended periods .



Technical parameters of Loop Detector



Supply voltage

 230V AC , 115V AC,24VDC/AC,12V DC/AC

Voltage tolerance AC
+10% / -15%
Voltage tolerance DC
±15%
Power Consumption
4.5VA
Output relays
240V/5A
Operating temperature
-20°C to +65°C
Storage temperature
-40°C to +85°C
Frequency range
20 kHz to 170 kHz
Reaction time
100ms
Signal holding time
Unlimited
Sensitivity
Adjustable in 3 increments
Loop inductance
Total loop plus connection wiring: 50μH to 1000μH. Ideal is 100μH to 300μH
Loop connection wiring
Maximum length 20 meters, twisted at least 20 times per meter
Size of Housing
78x40x108 mm (L x W x H)



Production

Traffic Vehicle Loop Detector Access Control Inductive Single Channel PD132 240V 5A



Package photo

Traffic Vehicle Loop Detector Access Control Inductive Single Channel PD132 240V 5A

Traffic Vehicle Loop Detector Access Control Inductive Single Channel PD132 240V 5A



Our advantages:



1. Our Factory has 15 years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample order and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
