SS304 Stainless Steel Hydraulic Rising Bollards Retractable Traffic Road Safety 220V

China SS304 Stainless Steel Hydraulic Rising Bollards Retractable Traffic Road Safety 220V supplier
SS304 Stainless Steel Hydraulic Rising Bollards Retractable Traffic Road Safety 220V supplier SS304 Stainless Steel Hydraulic Rising Bollards Retractable Traffic Road Safety 220V supplier SS304 Stainless Steel Hydraulic Rising Bollards Retractable Traffic Road Safety 220V supplier SS304 Stainless Steel Hydraulic Rising Bollards Retractable Traffic Road Safety 220V supplier SS304 Stainless Steel Hydraulic Rising Bollards Retractable Traffic Road Safety 220V supplier

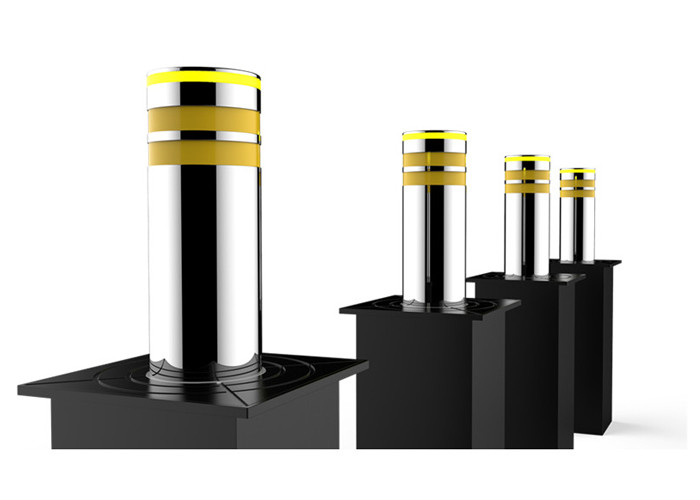

Large Image :  SS304 Stainless Steel Hydraulic Rising Bollards Retractable Traffic Road Safety 220V

Product Details:

Place of Origin: China
Brand Name: Sinomatic
Certification: CE
Model Number: SN-HRB01

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Wooden box
Delivery Time: 5-7 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 1000 pcs a month
Contact Now
Detailed Product Description
Brand: SINOMATIC Material: SS304
Diameter: 168mm, 219mm, 273mm, 324mm Height: 600mm To 1000mm
Thickness: 6mm To 20mm Up Time: 3s To 6s Adjustable
Down Time: 3s To 6s Adjustable Min. Loading: 80T

SS304 Stainless steel retractable traffic road safety automatic hydraulic rising bollards









System control Electric hydraulic
Material of bollard SS304
Power supply 220V
Rising height 600mm to 1000mm
Bollard diameter 168mm, 219mm, 273mm, 324mm
Bollard thickness 6mm to 20mm
LED light color Optional
Up time 3s to 6s adjustable
Down time 3s to 6s adjustable
Min. loading capacity 80T





Specifications of  safety road bollard



1. System:electric-hydraulic system
2. Max passing pressure: 80T to 120T trucks
3. Voltage:AC220V 50Hz Integrated
4. Power(w):300W Integrated
5. Up time:3-6S Adjustable
6. Down time:3-6S Adjustable
7. Working temperature:-65℃~75℃
8. Storage Environment:-10℃~65℃(water-proof, damp-proof,dust-proof)
9. Material:304 stainless steel
10. Rising height:600mm standard, Max. can be 1000mm
11. Bollard Thickness: 6mm standard ( 8mm, 10mm, 12mm, 20mm are optional)
12. Diameter:219mm Standard ( 168mm, 273mm, 324mm are optional)
13. Structure :With load-bearing steel beam column, anti-collision steel beam column, 4 navigation rod
14. Integrated electrical mechanism : stroke 600mm, Cylinder outer diameter 60mm, Rod diameter:16mm.
15. 6k Mirror tube.
16. LED light (optional)
17. Reflective sticker: 2 strips
18. Link-control interface
19. In case of a power outage, the bollards can be manually lowered down
20. IP rate: IP68

21. Weight:150±KG Integrated
22. In rising and falling,reversible operation is available
23. Device running noise≤60decibel
24. Waterproof integrated hydraulic device drive
25. The hydraulic cylinder is double sealed to ensure a waterproof rating
26. Hydraulic drive comes with hydraulic lock
27. PLC programming command control system
28. Solenoid valve voltage 24V
29. Remote control distance 50M-100M(Based on the environment)
30. The control box displays text adjustable (Up, Down, Action, Time control
adjustment)
31. Text display with Chinese and English bilingual
32. PLC built-in encryption system
33. Water immersion performance:48 hours without leakage and working well



Case reference

SS304 Stainless Steel Hydraulic Rising Bollards Retractable Traffic Road Safety 220V



Production workshop

SS304 Stainless Steel Hydraulic Rising Bollards Retractable Traffic Road Safety 220V

SS304 Stainless Steel Hydraulic Rising Bollards Retractable Traffic Road Safety 220V

SS304 Stainless Steel Hydraulic Rising Bollards Retractable Traffic Road Safety 220V



Shenzhen sinomatic is located in Shenzhen, China.Our manufacturing plant with approx. 4.700 square meter space, is equipped with modern production lines, own powder coating facility, developing department, processing center.



Products are widely used in transportation road, schools, government agencies, airports, prisons, military, customs, border control, parks,smart city and other fields.



Our aim is to use our knowledge, experience, manufacturing and design capacity, to be able to offer more flexibility than other manufacturers, providing custom made solutions, within short lead time and with value for money. Very resistant and durable products for reasonable pricing, variety of customization and system integration options, are the focuses for our business.



With excellent cost  performance in overseas market, our products are exported to Europe, US,East Asia, Russia, the Middle East Islamic war countries Advanced technology is accompanied by highest international quality standard. Comprehensive design, outstanding high technological standards together with superb corrosion protection, we gain trust of customers all over the world. At the same time we keep competitive price policy. Fast and dynamic growth of our company during last years and now we have more than 100 skilled employees.
