Automatic Remote Control Tire Killer One Way Spike Barrier Pre Embedded Surface Mount

China Automatic Remote Control Tire Killer One Way Spike Barrier Pre Embedded Surface Mount supplier
Automatic Remote Control Tire Killer One Way Spike Barrier Pre Embedded Surface Mount supplier Automatic Remote Control Tire Killer One Way Spike Barrier Pre Embedded Surface Mount supplier Automatic Remote Control Tire Killer One Way Spike Barrier Pre Embedded Surface Mount supplier Automatic Remote Control Tire Killer One Way Spike Barrier Pre Embedded Surface Mount supplier

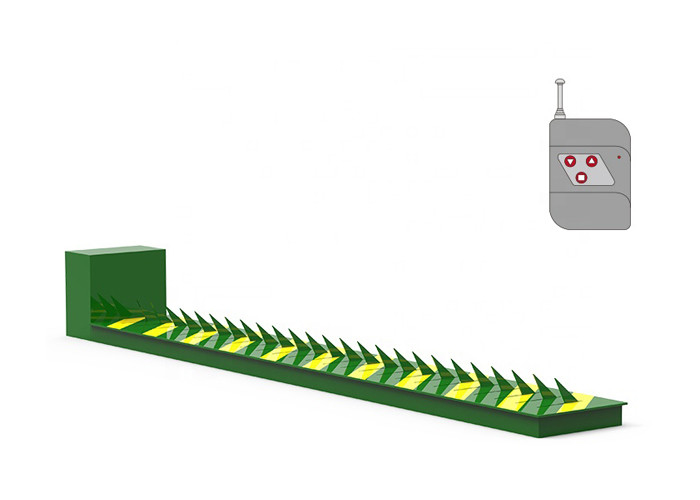

Large Image :  Automatic Remote Control Tire Killer One Way Spike Barrier Pre Embedded Surface Mount

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE
Model Number: SN-TK02

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-7 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3,00 pcs per month
Contact Now
Detailed Product Description
Product Name: Electric Tyre Killer Material: A3 Steel (Q235)
Painted Color: Yellow/black, Yellow/green, Yellow/red Rising Time: 1-2s
Dropping Time: 1-2s Lenght: 3m To 6m
Power Supply: 220V/ 110V Control Mode: Remote/Wire Switch

Automatic remote control one way spike barrier pre-embedded surface mount tyre killer



Automatic Remote Control Tire Killer One Way Spike Barrier Pre Embedded Surface Mount

Automatic Remote Control Tire Killer One Way Spike Barrier Pre Embedded Surface Mount

Easy-to-maintain

Axis: Design for disassembly, make it easy to exchange actuator



Wiring-pipe design

There's "wiring pipe" on each tyre killer. Make it easy to wiring even the power supply is on the opposite side.



Model
SN-TK02
Height of spikes (Rising)
120mm (Uni-directional)
Thickness of spikes
10mm
Thickness of panel
12mm
Axis
Dia.25mm, 45#steel - solid
Actuator
Single
Rising time
1-2s
Dropping time
1-2s
Manually rising/dropping
Yes
Power supply
220VAC/ 110VAC
Power consumption
200W~400W
Dimension - Length
2~6m (On request)
- Width
550mm (Uni-directional)
- Height (While dropped)
83mm
Color
Yellow/Green/Red
Color of reflective tape
Yellow/Black
Control center
Spray paint (Outdoor use)
Remote control distance
100m
Wire switch
Suport
Traffic light linkage control
Support

Quality Control

Automatic Remote Control Tire Killer One Way Spike Barrier Pre Embedded Surface Mount



1. Firm and anti-collision. The tyre killer body and spikes are made of 10mm thickness standard Q235 carbon steel with strong load-bearing and destructive power.The structure is firm and durable.


2. IP68 military protection standard.


3. Speedy and Low noise.The hydraulic tyre killer is hydraulically powered through both the raise and lower cycles, taking much less time and lower level of noise to operate.Typical operating (opening /closing) time is 1-2 seconds.


4. Safe and Reliable.Single phase drive motor, or a three phase motor to allow very high frequency of operation. This is ideal for large car parks or busy sites. Environment protection, low power consumption and high reliability.


5. Flexible control method, The system support remote control and drive-by-wire typically. For remote control, the controller is available to work 30 meters far away from the blocker device(depends on the radio communication environment on site).


6. Back up solution,Support manual operate mode,the spikes can lift or fall on level place by manual when power-off.



7. Convenient maintenance. It is easy to check, test and fix the problem.


8. Functional and Manageable: Safety accessories like photocells, inductive loop detectors , beam sensor can be integrated to the system very easily.



9. It can be installed with other access control elements (for example bollards, road barrier ,turnstiles,fire alarm system,traffic light) in order to achieve an access control check-point at the highest level of security.


10. Wide range of optional configurations: Can be custom designed to suit your requirements and can be built in an almost infinite range of thickness and length to suit any roadway or level of security.



Product photo

Automatic Remote Control Tire Killer One Way Spike Barrier Pre Embedded Surface Mount



Automatic Remote Control Tire Killer One Way Spike Barrier Pre Embedded Surface Mount



Automatic Remote Control Tire Killer One Way Spike Barrier Pre Embedded Surface Mount





Cases of automatic tire killer

Automatic Remote Control Tire Killer One Way Spike Barrier Pre Embedded Surface Mount
