Hydraulic Retractable Automatic Road Blocker IP68 Waterproof Security With APP Control

China Hydraulic Retractable Automatic Road Blocker IP68 Waterproof Security With APP Control supplier
Hydraulic Retractable Automatic Road Blocker IP68 Waterproof Security With APP Control supplier Hydraulic Retractable Automatic Road Blocker IP68 Waterproof Security With APP Control supplier Hydraulic Retractable Automatic Road Blocker IP68 Waterproof Security With APP Control supplier Hydraulic Retractable Automatic Road Blocker IP68 Waterproof Security With APP Control supplier

Large Image :  Hydraulic Retractable Automatic Road Blocker IP68 Waterproof Security With APP Control

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-HRB02

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-7 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 100 pcs per month
Contact Now
Detailed Product Description
Housing Lenght: 3m To 6m Blocking Length: 2.7m
System Power: 3.7KW Min. Loading: 80 Tons
Lifting Height: 500mm Material Thickness: 16mm/20mm/25mm
Power Supply: 380V Control Voltage: 24V

IP 68 Grade Waterproof Security Anti Terrorist Automatic Hydraulic Retractable Road Block barrier

Description of road blocker:
Road blockers are designed especially for entrance points which have a threat of vehicle attack or for the ones that have high security requirements. To control the vehicle access in high security application and traffic control system, hydraulic road blockers are the unique solution and the most secure equipment. Even though the attack is from high tonnage vehicles with high speeds, it's not possible for the vehicle to keep on moving because of the damage given to front, wheels , rims and the bottom of the vehicle.
Automatic road blockers provide a highly secure method of protecting a roadway against vehicular entry, offering an extremely overt visual deterrent which matches it’s ability to stop any road vehicles attempting to gain unauthorized access to your site. It can be widely used for high security applications such as custom house, border, port wharf, airport, prison, nuclear plant, military sites, government office building, high industrial risk factory and other sensitive places.

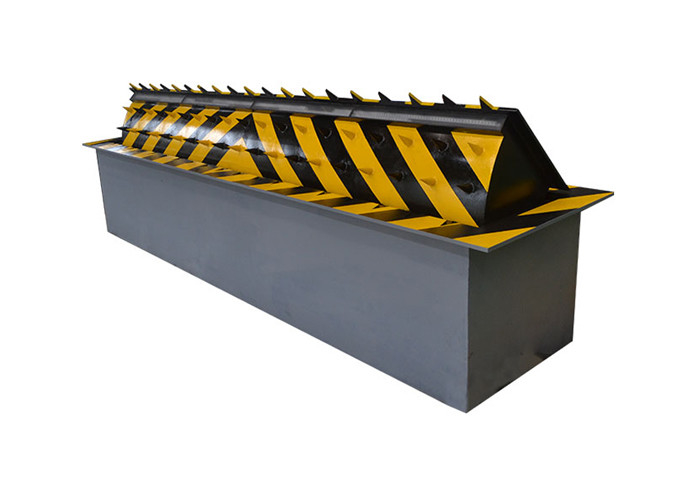

Product photo:
Hydraulic Retractable Automatic Road Blocker IP68 Waterproof Security With APP Control
Hydraulic Retractable Automatic Road Blocker IP68 Waterproof Security With APP Control






Standard Dimension (Can be customized)



System Control Modehydraulic oil controlInterception Length2700mm
Min.Pressure80 tons container truckControl Moderemote control/push button
System Power3.7KW / 380VWeight± 1.2Tons
Hydraulic Tank Capacity60 liter/ 80liter/120liter(can customized)Lifting Height500mm(default)
Length3 meters (can be customized)Material Thickness16mm/20mm/25mm
Size

3000*1000*760mm
(customized availible)

System include

Blocker body, remote controller, hydraulic station, manual pump,control box



Features of hydraulic road blocker:
1. System: hydraulic
2. Voltage: 3 phase 380V(control voltage DC24V)
3. Rising time: 1S to 3S (adjustable)
4. Working temperature: -35℃ to 75℃
5. Material: A3 steel, spay anti-rust paint
6. Weight: ± 1.2Tons
7. The road blocker has a buffer function
8. LED light color: red, blue, green, yellow, purple, white etc.(total 20 colors are available)
9. In case of power outage, the blocker can be manually raised and lowered.
10. Remote control distance: 50 to 100mm (depends on the environment)
11. Device running noise: ≤60 decibel
12. Control solenoid valve :24v



Production line:
Hydraulic Retractable Automatic Road Blocker IP68 Waterproof Security With APP Control
Hydraulic Retractable Automatic Road Blocker IP68 Waterproof Security With APP Control

Hydraulic Retractable Automatic Road Blocker IP68 Waterproof Security With APP Control

Options available
• Access control and systems
• Emergency buttons with lock down
• UPS backup for the electrical system
• STOP / NO Entry warning signs
• Accumulator systems for hydraulic operation in power failure conditions
• Inductive loop systems
• Traffic lights and back-indications systems

Case reference
Hydraulic Retractable Automatic Road Blocker IP68 Waterproof Security With APP Control

Hydraulic Retractable Automatic Road Blocker IP68 Waterproof Security With APP Control

About our company
Sinomatic Technology is located in Shenzhen, China.Our manufacturing plant with approx. 4.700 square meter space, is equipped with modern production lines, own powder coating facility, developing department, processing center.

Products are widely used in transportation road, schools, government agencies, airports, prisons, military, customs, border control, parks,smart city and other fields.
Our aim is to use our knowledge, experience, manufacturing and design capacity, to be able to offer more flexibility than other manufacturers, providing custom made solutions, within short lead time and with value for money. Very resistant and durable products for reasonable pricing, variety of customization and system integration options, are the focuses for our business. With excell performance in overseas market, our products are exported to Europe, US,East Asia, Russia, the Middle East Islamic war countries etc.
Advanced technology is accompanied by highest international quality standard. Comprehensive design, outstanding high technological standards together with superb corrosion protection, we gain trust of customers all over the world. At the same we keep competitive price policy. Fast and dynamic growth of our company in recent years and we're becoming better and better.
