Brushless Motor Building Access Control Swing Barrier 30 Persons / Min DC 24V

Brushless Motor Building Access Control Swing Barrier 30 Persons / Min DC 24V

    • Brushless Motor Building Access Control Swing Barrier 30 Persons / Min DC 24V
    • Brushless Motor Building Access Control Swing Barrier 30 Persons / Min DC 24V
  • Brushless Motor Building Access Control Swing Barrier 30 Persons / Min DC 24V

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-SB01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T or western Union
    Supply Ability: 1,000pcs per month
    Contact Now
    Detailed Product Description
    Normal Life-span: 5 Million Times Transit Speed: 30 Persons/min
    Cabinet Material: SS304 Cabinet Diameter: 168mm
    Driving Current: 3A Driving Motor: DC 24V
    Motor Type: Brushless Transit Direction: Single Or Bi-direction

    Automatic Brush-less DC motor Entrance Control Swing Gate/Barrier



    Description:

    Swing Gate series are intelligent passage management equipment researched, developed and produced by our company. The equipment is integrated with delicate mechanical transmission, microprocessor control, and various read/write techniques. It can be used for intelligent control and management of the passage after equipped with different read/write devices.



    Product photo:

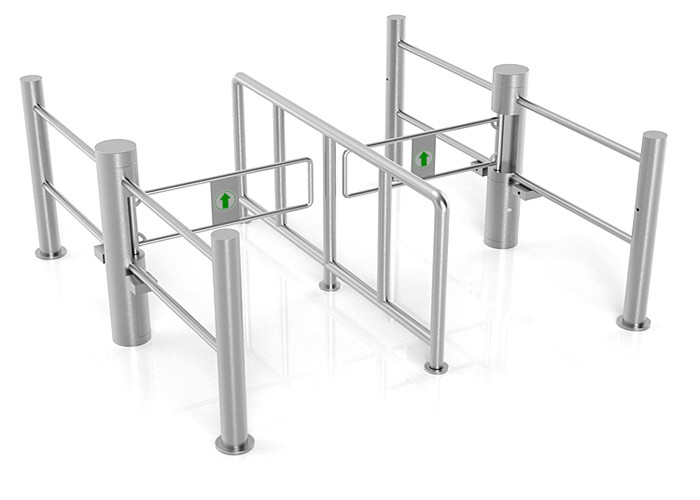

    Brushless Motor Building Access Control Swing Barrier 30 Persons / Min DC 24V

    Brushless Motor Building Access Control Swing Barrier 30 Persons / Min DC 24V

    Product size



    Brushless Motor Building Access Control Swing Barrier 30 Persons / Min DC 24V



    Main Functions and Features of the System



    1) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.

    2) DC Brushless Motor, Maintenance Free

    3) On-line or off –line mode(optional)

    4) Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation

    5) With direction indication, guiding passenger to entry and exit.

    6) Self automatic locking to prevent forcely passing without the card

    7) Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000

    8) Light and sound alarm indication function, preventing illegal entry or irregular passing

    9) Powerful on-line intelligent control mode, facilitating you:

    A)To adjust the operation speed of the barrier according to the flow of passenger and improve the passing rate.

    B)To set up operation mode for passage entry and exit.

    C)To read card with multiple times, the special function meeting the application requirements of a particular site.

    D)To set up the card reading with or without memory.

    E)To select a reasonable normally open or close mode, to divert the flow of passengers effectively.

    F) Setting function humanized for reset of over time passing.

    10)The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.



    Specifications of Pedestrian Swing Gate:





    Working temperature
    -20°C~+60°C
    Operating voltage
    DC 24V
    Power supply input
    AC220±10%V 50Hz/AC110±10% 60Hz
    Optimal flow rate
    30 person per minute
    Arm lenght
    Max. 730mm
    Arm material SS304/ acrylic
    Current
    3A
    Motor type
    brushless DC motor
    Openning or closing time
    1s to 2s
    Reset time when power on
    3S
