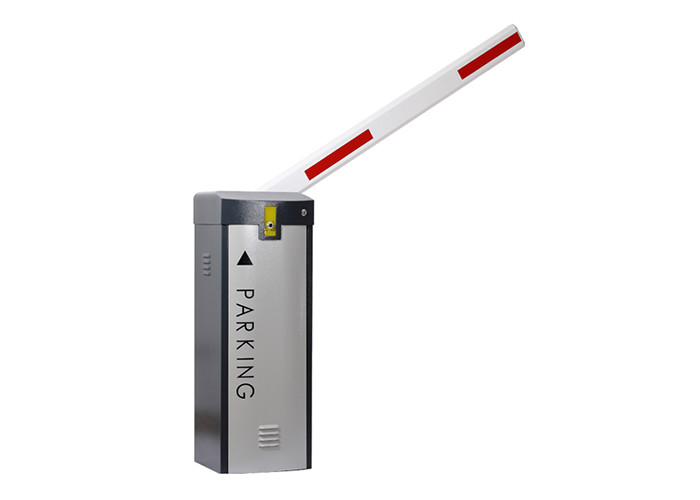

2mm Cold Rolled Case Parking Barrier Gate With 100% Pure Copper Motor

2mm Cold Rolled Case Parking Barrier Gate With 100% Pure Copper Motor

    • 2mm Cold Rolled Case Parking Barrier Gate With   100% Pure Copper Motor
    • 2mm Cold Rolled Case Parking Barrier Gate With   100% Pure Copper Motor
    • 2mm Cold Rolled Case Parking Barrier Gate With   100% Pure Copper Motor
    • 2mm Cold Rolled Case Parking Barrier Gate With   100% Pure Copper Motor
    • 2mm Cold Rolled Case Parking Barrier Gate With   100% Pure Copper Motor
    • 2mm Cold Rolled Case Parking Barrier Gate With   100% Pure Copper Motor
  • 2mm Cold Rolled Case Parking Barrier Gate With   100% Pure Copper Motor

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-BG124

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD 330 to 380
    Packaging Details: CARTON/WOODEN
    Delivery Time: 7 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram
    Supply Ability: 1,000 pcs per month
    Contact Now
    Detailed Product Description
    Running Speed: 1s, 1.8s, 3s, 6s Arm Type: Straight Arm, Folding Arm, Fenced Arm
    Arm Lenght: Max 6 Meters Arm Shape: Round, Octagonal
    Case Material: 2.0mm Cold Roll Plate Spring: Compression Spring

    Malaysia Market AC Motor 2mm Cold Rolled Case Photo electrical limit switch 5 Million MCBF Toll Gate



    Advanced Features



    1. 100% pure copper motor: more durable, safety and stable when barrier gate is working. Inside with anti -frozen oil, which can make barrier functions well in low temperature.

    2.Motor cooling fan: it will operate automatically, when barrier works in high temperature or motor works in heavy duty .

    3.AC motor: its strong and powerful, can easily lift up even with additional signage installed no the barrier arm. it is Frequent positive and negative (won't burn), durable, thermal protection, low power consumption, low noise.

    4.Photo electrical limit switch: photo electrical limit switch uses smart motor counter to auto detect open/close position for higher accuracy and better stability. No more mechanical wear and tear which causes the arm to tilts up or down.

    5. Arm swing out : arm will swing out when hit directly by vehicle to avoid further damage on the vehicle.(for 1s and 1.8s)
    6. Arm auto reverse: built in smart collision detection technology allows arm to auto reverse when hit with an obstacle during closing to prevent further scratches & dents on the vehicle .Optional photo beam allows arm to auto reverse earlier before hitting the vehicle . Optional photo beam allows arm to auto reverse earlier before hitting the vehicle. Optional rubber lining to protect the vehicle from further damages.

    7.Clutch device : The clutch device can be conveniently unlocked to manually open or close the arm without removing the whole top cover or body housing. Resulting in hassle free operation and all components inside the barrier body are safe from danger and vandals.

    8.Sturdy housing : housing is made with 2.0 mm cold rolled steel sheet for extra durability to support longer arm. Housing body is coated with epoxy paint for waterproof protection.




    Specifications:



    Housing size 360*290*1020mm
    Running speed 1s, 1.8s, 3s, 6s
    Weight 55KG
    Rated voltage AC100V ~ AC264V, DC24V, 50Hz ~60Hz
    Operation Testing More than 5 million times
    Max Boom lenght 6m
    Boom type straight, folding, fencing boom
    Working temperature
    -45°C~+75°C
    Remote control distance
    30m
    Package Carton box





    2mm Cold Rolled Case Parking Barrier Gate With   100% Pure Copper Motor



    2mm Cold Rolled Case Parking Barrier Gate With   100% Pure Copper Motor
