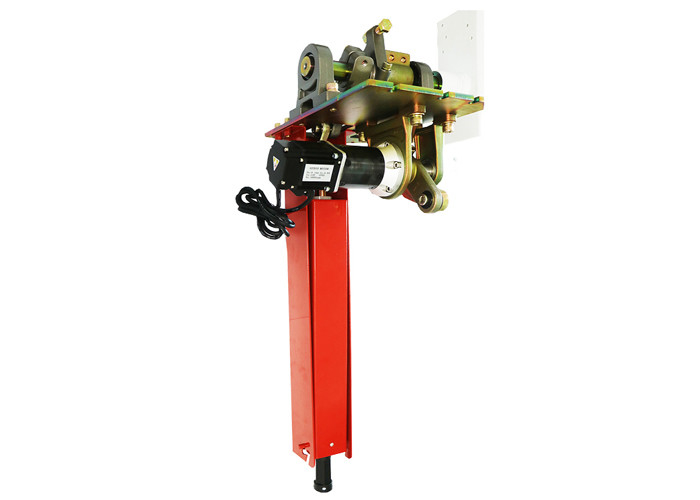

High Speed 0.6 Second Automatic Barrier Gate With Servo 24VDC Motor

High Speed 0.6 Second Automatic Barrier Gate With Servo 24VDC Motor

    • High Speed 0.6 Second Automatic Barrier Gate With Servo 24VDC Motor
    • High Speed 0.6 Second Automatic Barrier Gate With Servo 24VDC Motor
  • High Speed 0.6 Second Automatic Barrier Gate With Servo 24VDC Motor

    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-BGM4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T, Western Union, MoneyGram, D/A, L/C, D/P
    Supply Ability: 3,000pcs per month
    Contact Now
    Detailed Product Description
    Speed: 0.6s, 0.9s, 2s, 4s Boom Length: Max 6 Meters
    Arm Type: Straight, Folding, Fencing Boom Certificate: CE
    Package: Carton Or Wooden Box Motor Type: Servo Motor
    Motor Voltage: DC 24V Warranty: 2 Years

    High speed 0.6 second servo 24VDC motor parking barrier gate mechanism



    Keywords:

    Barrier gate, servo motor, DC motor, maintenance-free, traffic barrier, auto gate, gate barrier, rising barrier, parking barrier gate, vehicle barrier gate, heavy duty barrier gate, high speed barrier gate, toll gate, parking management system, access control system.



    Applications Automatic Barrier Gate Motor:

    This barrier gate is suitable for indoor as well as outdoor parking area, Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers,etc.



    Features of Automatic Barrier Gate Motor:


    1. The use of Single Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.

    2. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.

    3. Barrier gate up & down signal relay switch output.

    4. Barrier gate operation abnormal alarm signal output.

    5. External loop detector signal anti-smashing interface, infrared sensor signals anti-smashing interface.

    6. Arm Open priority anti-smashing function, regardless of the current gate in what state, the operator through the triple push button, software or remote control to issue a gate arm up, the gate will give priority to the implementation of the opening action.

    7. Delay down selection function.

    8. Parking system interface

    9. Anti-collision alarm signal interface.

    10. Adjustable speed port (S curve adjustment)



    Specifications of servo motor:



       0.6s 0.9s
    Motor voltage DC24V DC24V
    Rated input current 6.25A 3A
    Rated input power 200w 150w
    Rated output power 150w 100w
    Rated speed 0.6s 0.9s
    Rated torque 0.636 N.M. 0.318N.M.

    Planetary Gear Reduction Ratio

    35 70

    Power Consumption

    100W 30W

    Motor Rotation

    2000rpm 2000rpm

    Motor Insulation Class

    Class B

    Class B



    Production details:

    High Speed 0.6 Second Automatic Barrier Gate With Servo 24VDC Motor



    High Speed 0.6 Second Automatic Barrier Gate With Servo 24VDC Motor

    High Speed 0.6 Second Automatic Barrier Gate With Servo 24VDC Motor

    Production line:



    High Speed 0.6 Second Automatic Barrier Gate With Servo 24VDC Motor



    High Speed 0.6 Second Automatic Barrier Gate With Servo 24VDC Motor



    About us:



    Shenzhen Sinomatic Technology Co., Limited always focus on the manufacturing of access control turnstile and barrier for high security with the customers’ encouragements and supports.
    Main products includes pedestrian control turnstiles, parking barriers and parking locks, road blockers and road bollards etc.
    Products has been exported to all over the world, favored by the majority of the customers. High quality and good faith for customers is our pricinple and this is also our biggest motivation.



    Our service:

    1.Before sale technical support, we can work out exact solution according to clients requirement Wiring diagram and products manual are provided for installation.

    2.We can provide technical support via email/video/phone/teamviewer from long distance. Free training. You can send staff to China for training, or we can arrange engineers to your place for training.

    3.Our machine failure rate is low. You can also store some parts for back up, if the parts break down, you can replace it immediately.
