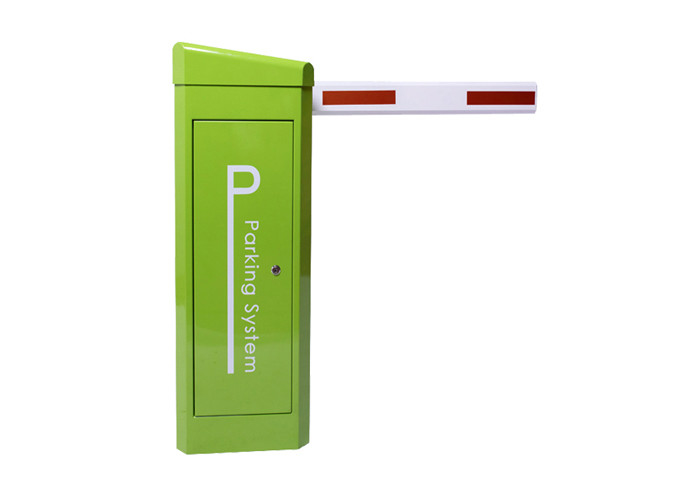

Permanent Magnet Synchronous Automatic Barrier Gate With Carbon Steel Housing

China Permanent Magnet Synchronous  Automatic Barrier Gate With  Carbon Steel Housing supplier
Permanent Magnet Synchronous  Automatic Barrier Gate With  Carbon Steel Housing supplier Permanent Magnet Synchronous  Automatic Barrier Gate With  Carbon Steel Housing supplier Permanent Magnet Synchronous  Automatic Barrier Gate With  Carbon Steel Housing supplier Permanent Magnet Synchronous  Automatic Barrier Gate With  Carbon Steel Housing supplier Permanent Magnet Synchronous  Automatic Barrier Gate With  Carbon Steel Housing supplier

Large Image :  Permanent Magnet Synchronous Automatic Barrier Gate With Carbon Steel Housing

Product Details:

Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-BG138

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD 500 to 600/ PC
Packaging Details: CARTON/WOODEN
Delivery Time: 5-10 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1,000 pcs per month
Contact Now
Detailed Product Description
Cabinet Material: Carbon Steel Speed: 0.6s, 0.9s, 2s, 4s
MTBF: 10 Million Times Protection Grade: IP55
Warranty: 2 Years Application: Indoor/outdoor
Boom Type: Straight, Folding, Fence Boom Shape: Round, Octagonal

Permanent Magnet Synchronous Servo Motor Green Color Carbon Steel Housing Toll Gate



Our Advantages



1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*6d at your service to give you best suppor
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for small order.



Advanced Features



1. Gate automatically open when power off, no clutch design, no need human intervention. When power on, gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If special requirement, manual operation is required when power off, operating arm open and close manually also can be realized by setting up control board DIP switch, which ensure that the system can be used at any time.

2. A variety of input and output modes can be selected, normally open normally closed are optional.

3. Closing speed can be adjusted.

4. Barrier gate running state: OK signal output indicating that the gate is working properly.

5. R&G Traffic light relay switch signal output.

6. Count mode interface.

7. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid damage to the vehicle, and barrier gate machine.

8. High-sensitivity arm auto reverse function (intensity can be adjusted).

9.RS485 or RS232 network communication control up &down interface (no need to install communication module)

10. Adjustable speed port (from 0.9s to 10 s)



11. Count mode interface.



12. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through the triple



Optional colors:

Permanent Magnet Synchronous  Automatic Barrier Gate With  Carbon Steel Housing

Mechanism part

Permanent Magnet Synchronous  Automatic Barrier Gate With  Carbon Steel Housing



Specifications of Automatic Barrier Gate:



Boom length max 6m
Speed 0.6s, 0.9s, 2s, 4s
Rated voltage
AC100V ~ AC264V, DC24V, 50Hz ~60Hz
Housing Material
Carbon steel
Net weight (no boom)
43KG (not with boom)
Power consumption
100W/ 150W
Boom type straight, folding, fencing boom
Working temperature
-45°C~+85°C
Protection grade
IP54
Driving unit
Servo motor



Product photo:

Permanent Magnet Synchronous  Automatic Barrier Gate With  Carbon Steel Housing

Permanent Magnet Synchronous  Automatic Barrier Gate With  Carbon Steel Housing

Boom Lenghths with Speeds



Permanent Magnet Synchronous  Automatic Barrier Gate With  Carbon Steel Housing



FAQ:



Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer.



Q: Do you provide free samples ?

A: No,we don't provide free samples. The MOQ is 1pcs.


Q: How long is your delivery time?Shipping Terms?
A: Based on your QTY,Generally 2-5 days for stock. 5-7 days for larger order

Shipping Terms:DHL/Fedex/TNT/SEA/AIR etc.


Q: How is your payment terms?
A: T/T or Western Union etc.
