    Product Details:

    Place of Origin: SHENZHEN, CHINA
    Brand Name: SINOMATIC
    Certification: CE/ ISO
    Model Number: SN-DBX100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiable
    Packaging Details: CARTON/WOODEN
    Delivery Time: 5-10 working days after payment received
    Payment Terms: T/T or western Union
    Supply Ability: 1,000 pcs per month
    Contact Now
    Detailed Product Description
    Maximum Card Size: 10 (W) X 9 (H) Cm Indicated Light: Dropbox Fully Occupied
    Power Consumption: Idle : 24VDC, 0.01A Operation : 24VDC, 4.71- 4.74A Collection Bin Dimension: 13.5 X 13.5 X 29 Cm
    Capacity: Can Contain Maximum 280 Cards Warranty: 1 Year



    Reusable access card system 100% accuracy dropbox visitor card collector for exit and entry



    Why use this: To Manage residents, visitors, contractors and employees coming in and out of communities or buildings.



    Science and technology are improving very fast and we are becoming dependent on technology gradually and it has made our maintenance easy and saves our valuable time. Dropbox card collector access control system may be the best and ideal solution for your crowd control. Authority of different organizations are spending so much moeny every year for the lost visitor card and also have to issue new visitor card; security threats given by the missing visitor access cards is also a big problem, in this situation dropbox card collector access control system has come up with this smart and most effective sulution for which you have waiting eagerly for long science.



    Application:



    Dropbox is suitable for indoor application only. It is NOT suitable to be installed outdoor or near sea side.



    Features:



    • Flexible card size. Can support maximum card width up to 10cm. DBX100 can take in entire card withcard holder and pin clip.
    • Can be integrated with VMS & access control. Any proximity reader can be installed inside the dropbox. Access reader just needs to provide dry contact output to trigger dropbox to accept the card. Valid visitor card will be accepted into collection bin and open the gate when you integrate with your access control system. Invalid visitor card will be falls out to exit tray at front.
    • User friendly & easy operation. Green light indicates the card is valid and card fall in collection box. Red light when fully occupied and the card will be rejected and falls out to exit tray in front.
    • Easy maintenance. Top cover can be opened by key. Entire machine core can be taken out easily for servicing or installing reader. Bottom door can be opened by key to take out collection bin once it is full. Once collection bin is full, all cards (valid/invalid) card will fall out to the exit tray. DBX100 will not accept any more cards until the collection bin is cleared.



    Specification:



    Description Parameter
    Power supply AC230 power input
    Built in DC24V power supply
    Power consumption Idle : AC 0.04A, DC 0.01A
    Operation : AC 0.28A , DC 4.71- 4.74A
    Indicated light Blue : Power On
    Green : Valid card
    Red : Dropbox fully occupied
    Collection bin
    dimension
    13.5 x 13.5 x 29 cm
    Can contain maximum 280 cards
    Maximum
    card size
    10 (W) x 9 (H) cm

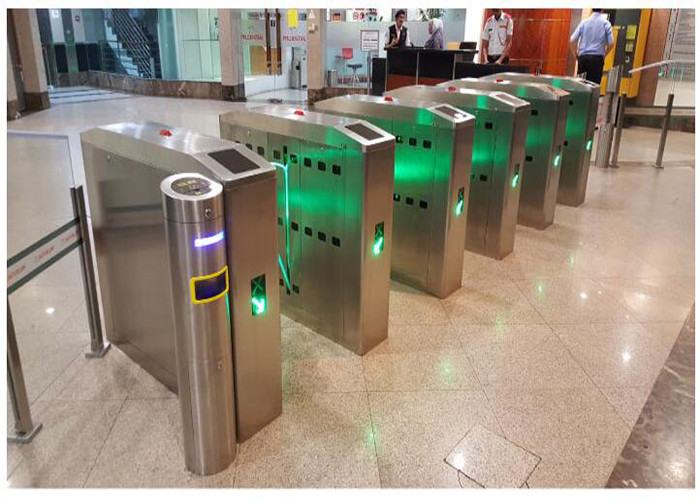

    Cases reference:

    Proximity Card Reader Visitor Management Software (Vms) Dropbox Card Collector



    Typical application usage



    Dropbox can be used with visitor management software (VMS) to achieve auto-visitor check out function. Visitor no longer need to go to the reception counter to return their visitor card. Visitor just needs to drop their visitor card into dropbox, the card will automatically check out this visitor in VMS software record.


    Dropbox also can be used for ticketing application. Visitor can purchase entrance fees and be given a proximity card. Visitor drop the proximity card into dropbox to trigger gate to open. Operator collects all ticket (proximity card) back to ticket counter once the collection bin is full. Operator can reuse the proximity card again for next visitor.
