IP54 Remote Control 6s 140W Automatic Parking Barriers

IP54 Remote Control 6s 140W Automatic Parking Barriers

IP54 Remote Control 6s 140W Automatic Parking Barriers
IP54 Remote Control 6s 140W Automatic Parking Barriers
IP54 Remote Control 6s 140W Automatic Parking Barriers
Product Details:
Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-BG130-DC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-10 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Working Temperature: -40℃~+75℃ Voltage: 220V±10%, 110V±10%, 50/60HZ
Rated Power: 140W Warranty: 1 Year
Net Weight: 50Kgs Place Of Origin: Shenzhen,China
High Light:

140W Automatic Parking Barriers

,

6s Automatic Parking Barriers

,

IP54 Remote Control Barrier Gate

IP54 Remote Control Vehicle 140W rated power Automatic Parking Barriers OEM Service



Our Advantages:



1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for small order.


Product Description



BG-130 is our typical mode of barrier gate for parking system application. This mode with strong structure, the body made by 1.5mm cold-rolled plate heavy duty case with IP54 protection, surface with outdoor type good quality thermos-stability spray painting. The arm support straight, fold, and fence bar for suit different application, user can open/close arm by remote control, push key and manual handle. Here introduce more details as below:



Functions & Features


1.The operation speed can be adjusted(2s to 6s).


2.Arm direction can be quickly interchanged.


3.Barrier gate up &down signal relay switch output.



4. R&G Traffic light relay switch signal output.


5. External loop detector signal anti-smashing interface.


6. Infrared sensor signal anti-smashing interface.



7. Count mode interface.


8.Arm swing out function,when the vehicle hit the barrier gate,the arm can be swing out to avoid further damage.



9. High-sensitivity arm auto reverse function (intensity can be adjusted).



10. Parking system interface.

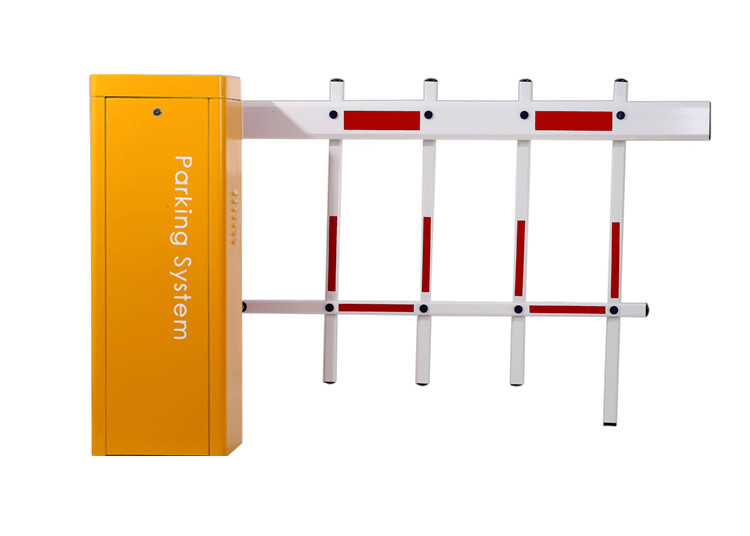

PRODUCT PHOTO

IP54 Remote Control 6s 140W Automatic Parking Barriers 0



Technical data



Working Temperature -35℃~+85℃
Power Supply DC24V
Open/close Speed 2Sec to 6sec(adjustable)
Rated Current 8.58A
Rated Power 140W
Motor No-load Speed 1850rpm
Rated Rotating Speed 1400rpm
Output Power 56.8N.m
Humidity ≤90%
Remote Control Distance ≤100m (open, sunny weather)
Protection Grade IP44
Max Boom Length 6M



Each barrier will include:



1 pcs Vehicle Barrier gate
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers, 1 pc push button
1 pcs manual book



Service for free:
1. One year free service is supplied(not including the arm)

2. Lifetime charged service is supplied

3. Technical service is supplied

4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.

5. Technical support and aftersales service, it is a long term relatioship between us.

6. Price can be negotiable when you have big order quantity.



Service for charging:

1. Broken by wrong installation

2. Broken by improper voltage

3. The surfaces of the barrier destroyed by wrong installation and usage

4. Overdue service items are out of our promise.
