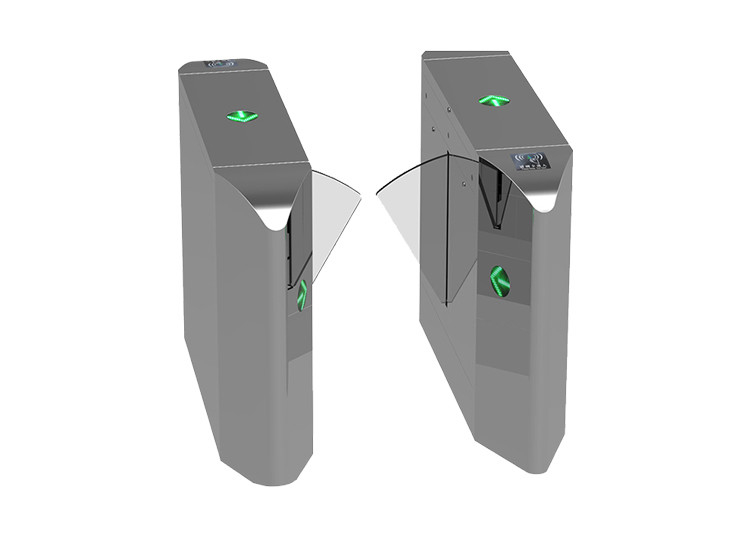

BLDC Motor Acrylic Wing Automatic Flap Turnstile SUS304 Retractable

BLDC Motor Acrylic Wing Automatic Flap Turnstile SUS304 Retractable

BLDC Motor Acrylic Wing Automatic Flap Turnstile SUS304 Retractable
BLDC Motor Acrylic Wing Automatic Flap Turnstile SUS304 Retractable
BLDC Motor Acrylic Wing Automatic Flap Turnstile SUS304 Retractable
Product Details:
Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-FB03
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-10 working days after payment received
Payment Terms: T/T or western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Thickness Of Housing: 1.2mm At Least Material Of Housing: SS304/SS316 Stainless Steel
Working Temperature: -20°C~60°C Waranty: 1 Year
Direction: Single Or Double IP Grade: IP44
High Light:

BLDC Motor Automatic Flap Turnstile

,

Acrylic Wing Automatic Flap Turnstile

,

SUS304 Retractable Flap Barrier

SUS304 Factory Direct Sale BLDC Motor Acrylic Wing Automatic Flap Turnstile



Product description



Flap barrier, also known as flap turnstile, is one type of the access management equipment, mainly used for



pedestrian access management,with the fast opening safe and convenient characteristics, is the ideal pedestrian



high frequency access mangment equipment,organically integrating machinery electronics microprocessor control,



and all kinds of different reading and writing equipment. Through figuring all kinds of different reading and writing



equipment,and adopting reliable performance safety protection devices real-time alarm system, and direction indicator



interface, realizing the access intelligent control and management by the mutual coordination .







Advantage of Sinomatic Flap Turnstile Gate



1. Flaps open when power off, and auto-close when power on.

2. Compatible with diverse access control devices.

3. Pedestrian flow directions can be single or double directions.

4. Available for two-way traffic lights, which can prompt the state---pass or no-entry.



MAIN FUNCTIONS AND FEATURES



1. Fault detection and alarm functions, easy to use and maintenance.



2. The running status can be programmed and controlled with the built-in keyboard on the main board.



3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working

automatically within the prescribed time and reset again after the default delay (till fully reset).



4. Anti-breakthrough function. The gate is locked automatically until opening signal received.



5. Synchronization functions (for dual gate equipment).



6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds),

the system will cancel the authority of the current user automatically.



7. Gate can be set as normally open or normally closed.



8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed).



9. Direction can be set as single-direction or bi-direction.



10. LED direction indicator.



11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.



12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.



13. Counter function (optional).



14. Support infrared photocell for anti-pinch and reset function.



PRODUCT SPECIFICATIONS



Model
SN-FB03
Case Material
SS304(1.2mm)
Flap Material
Acrylic, Foam
Production Process
CNC Laser Cutting
Size
1200*300*980mm(Customization acceptable)
Power input
AC100-240V,50/60HZ
Operation voltage
DC24V, 3A, Power: 40W
Electromagentic
Duty Cycle 100%
Barrier Arm Length
260mm
Passage Width
600mm
Passage direction
Single directional/Bi-directional(Optional)
Operating time
1S
Throughput Rate
25-30 persons/minute(Normally Closed) or 40 persons/(Normally Open)
IP grade
IP44
MCBF
5,000,000 Cycles





BLDC Motor Acrylic Wing Automatic Flap Turnstile SUS304 Retractable 0
