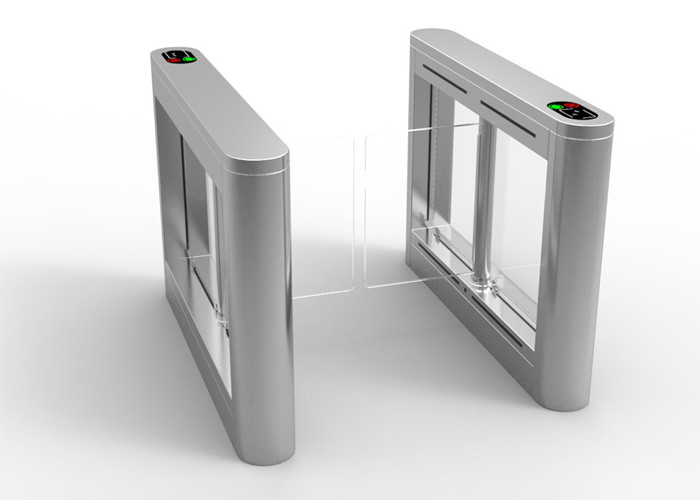

Bi Directionsal Security Swing Gate Entry Control 180 Degree Direction Swing Arm

Bi Directionsal Security Swing Gate Entry Control 180 Degree Direction Swing Arm

  • Bi Directionsal Security Swing Gate Entry Control 180 Degree Direction Swing Arm
  • Bi Directionsal Security Swing Gate Entry Control 180 Degree Direction Swing Arm
Bi Directionsal Security Swing Gate Entry Control 180 Degree Direction Swing Arm
Product Details:
Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-SB04
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-10 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 1,000pcs per month
Contact Now
Detailed Product Description
Housing Material: 304 Grade Stainless Steel Housing Thickness: 2.0mm
Gate Material: Clear Acrylic Max. Passage Width: 1000mm
Arm Swing Angle: 180 Degree Swing Direction: Single Or Bi-direction
High Light:

security swing gate

,

swing barrier gate

Secure bi-directionsal entry control 180 degree direction swing arm speed gate



Introduction

Sinomatic speed gate serials provide a secure bi-directionsal entry control,While blending beautifully with high end environments.Some of the benefits of using Intelligent Speed Gate increased facility security; more organized etry/exit process; and a reduction in staff required to monitor guest/employee access.



All models can be integrate with access control system and provide quiet,highly-reliable operation and rapid throughput. A combination of integrated sensors and motorized barriers control access,block unauthorized entry attempts and detect “tailgating” on allowed entries.Sounds and lights alery when an unauthorized passage is attempted.Center cabinet designs allow for space-saving,multilane configurations.



Sinomatic speed gate is an ideal passenger access management device produced by our company after several years of research and development. Our standard product, made of 304 stainless steel, integrating with mechanism, electron, microprocessor an various identification technology, is able to achieve access intelligent control and management by configuring all kinds of identification devices, direction indicator and well-extended LED counting display.



Features of swing arm speed gate



1. working method can be set by the buttons on the main panel
2. Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.
3.Anti-illegal in, anti-intrusion, auto close for reverse direction.
4. Anti-collision, gate closes when no valid signal is given.
5. Protection functions for gate, gate open to prevent motor from being damaged if there is outer force collision.
6. Gates can be synchronous for multiple lanes.
7.Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (time adjustable).
8. Reset function by photocells.
9. Anti-pinch function by photocells.
10.Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
11. One way or two way control optional
12. Unit can be controlled and administered by remote control
13. Led lamp indicator



Specifications of swing arm speed gate



Framework Material 304 grade Stainless Steel
Dimension L1200 * W220 * H1000mm
Net Weight 80kg
Passage Width 650mm (One passage)
Passing Direction Single directional / Bi-directional
Power Supply 100V~240V, 50/60Hz
Operation Voltage 24V DC
Power Consumption 30W
Operation Temperature -20 °C ~+60 °C
Operation Humidity 0 ~ 95% (No freeze)
Working Environment Indoor / Outdoor (Shelter)
Flow Rate 30 to 35 people per minute
LED Indicator Included
Infrared Sensor Included
Emergency Automatic arm open when power off



Production line of swing arm speed gate



Bi Directionsal Security Swing Gate Entry Control 180 Degree Direction Swing Arm 0



Bi Directionsal Security Swing Gate Entry Control 180 Degree Direction Swing Arm 1



Bi Directionsal Security Swing Gate Entry Control 180 Degree Direction Swing Arm 2



Bi Directionsal Security Swing Gate Entry Control 180 Degree Direction Swing Arm 3



Our advantages
1.Professional solutions.
2.Competitive and reasonable price
3.Advanced technology
4.High quality
5.Fast delivery
6.Best service
7.High reputation of this industry
8.Wonderful team
9.The product have a wide range application
