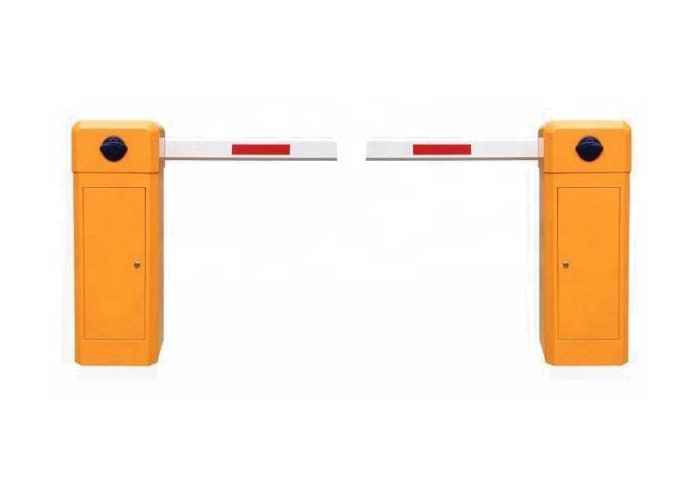

80 Watt Automatic Barrier Gate System Intelligent Vehicle High Speed 2 Years Warranty

80 Watt Automatic Barrier Gate System Intelligent Vehicle High Speed 2 Years Warranty

  • 80 Watt Automatic Barrier Gate System Intelligent Vehicle High Speed 2 Years Warranty
  • 80 Watt Automatic Barrier Gate System Intelligent Vehicle High Speed 2 Years Warranty
  • 80 Watt Automatic Barrier Gate System Intelligent Vehicle High Speed 2 Years Warranty
  • 80 Watt Automatic Barrier Gate System Intelligent Vehicle High Speed 2 Years Warranty
  • 80 Watt Automatic Barrier Gate System Intelligent Vehicle High Speed 2 Years Warranty
  • 80 Watt Automatic Barrier Gate System Intelligent Vehicle High Speed 2 Years Warranty
80 Watt Automatic Barrier Gate System Intelligent Vehicle High Speed 2 Years Warranty
Product Details:
Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-BG102
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-10 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram, D/A, L/C, D/P
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Color: Yellow/orange/blue/grey/white/red/green/golden Thickness Of Housing: 1.5mm
Surface Finish: Powder Coating Arm Length: Max 8 Meters
Boom Type: Straight, Folding And Fencing Are Available Warranty: 2 Year
Speed: 1s, 1.8s, 3s, 6s Voltage: 220V/110V
Package: Carton
High Light:

traffic barrier gate

,

parking lot barrier gates

Automatic Barrier gate system for parking and intelligent vehicle access control



Product Application

The SN-BG102 barrier gate, which manufactured by our company, adopt the latest automatic technology and intelligent design ahead in this field. Meanwhile our barrier gates have the advanced design, such as humanization clutch device, balance device(e.g), which makes our barrier gate work more safely and conveniently. This barrier gate is suitable for indoor as well as outdoor parking area, Parking lots, toll gate, goods yard, railway crossing, commercial premises, apartment block access shopping malls, hospitals, stadiums, business centers,etc.



Production Series

Model No. (BG) Open/Close Speed Max Boom Length Boom Type
102-16 6 sec 6m straight boom
102-13 3 sec 4.5m straight boom
102-11 1 sec 3m straight boom
120-26 6 sec 5m 90 degree,Articulated boom
102-23 3 sec 3m 90 degree,Articulated boom
102-36 6 sec 5m 180 degree,Articulated boom
102-33 3 sec 3m 180 degree,Articulated boom
102-46 6 sec 4.5m Two-level, fence boom
102-56 6 sec 4m Three-level, fence boom





Technical Specification



Working Temperature -40℃~+75℃
Voltage 220V±10%, 110V±10%, 50/60HZ
Rated power 80W
Relative humidity ≤90%
Remote control distance ≥30m
Net weight 60kgs
Arm Speed 1s, 1.8s, 3s, 6s
Max boom length 8 meters





Functions & Features



1) Manual realease
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking;
3) Die-casting aluminum alloy motor, precision and good at thermal radiating;
4) Motor cooling fan, solving the problem of heat-protection;
5) Double safety limitswitches (photoelectricity limit switch/motor memory sensor);
6) Reversing on obstacle;
7) Auto-closing;
8) Support the In frared Photocell for anti-bumping function(optional);
9) Support the external and internal Vehicle Loop Detector;
10) Traffic light interface;
11) Wire Control ( switch signal) / remote control (418 HZ/433 HZ );
12) RS485 Communication module (optional).



80 Watt Automatic Barrier Gate System Intelligent Vehicle High Speed 2 Years Warranty 0



Our workshop:

80 Watt Automatic Barrier Gate System Intelligent Vehicle High Speed 2 Years Warranty 1



FAQ:



Q: What's the monthly production capacity for barrier gate?

A: 1000 units.

Q: What is the warranty for the machine?

A: 12 months.

Q: When will you make the delivery?

A: In general, Regular products: 2-7 days.

Q: How does your factory control the quality?

A: Quality controlling from the beginning to the ending.

Q: What is your MOQ?

A: Any quantity is acceptable.

Q: Payment term?

A: 30% deposit, 70% before delivery
