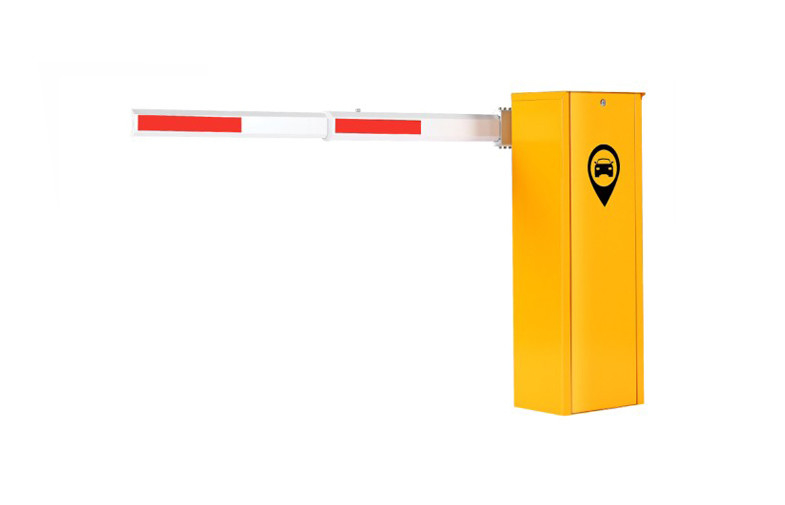

6M Arm 1.5 Sec 24v Dc 140w Automatic Barrier Gate

6M Arm 1.5 Sec 24v Dc 140w Automatic Barrier Gate

6M Arm 1.5 Sec 24v Dc 140w Automatic Barrier Gate
6M Arm 1.5 Sec 24v Dc 140w Automatic Barrier Gate
6M Arm 1.5 Sec 24v Dc 140w Automatic Barrier Gate
Product Details:
Place of Origin: SHENZHEN, CHINA
Certification: CE/ ISO
Model Number: SN-BG220-DC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-10 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3,000 pcs per month
Contact Now
Detailed Product Description
Housing Color: Yellow Power Supply: 220V/110V ±10%/ DC24V
Frequency: 50/60HZ Power: 140W
Open/close Speed: 1.5sec To 6 Sec(adjustable) Protection Grade: IP 54
Working Temperature: -35℃~+85℃ Rated Power: 140W
Rated Current: 8.58A
High Light:

1.5 Sec Automatic Barrier Gate


6M Arm Automatic Barrier Gate


140w Parking Lot Barrier Gates

1.5sec 24v dc brushless 140w rated power motor fast speed parking barrier gate management system



Specifications of Automatic Barrier Gate


Working Temperature -35℃~+85℃
Power Supply DC24V
Open/close Speed 1.5sec to 6 sec(adjustable)
Rated Current 8.58A
Rated Power 140W
Motor No-load Speed 1850rpm
Rated Rotating Speed 1400rpm
Output Power 56.8N.m
Humidity ≤90%
Remote Control Distance ≤100m (open, sunny weather)
Protection Grade IP54
Max Boom Length 6M


Technical parameters


1 Working temperature(motor): -35℃~+85℃

2 Rated voltage:DC24V

3 Running speed:1.5s-8s

4 Rated current:8.58A

5 Rated power:140W

6 No-load speed:1850rpm

7 Rated speed:1400rpm

8 Output Power:56.8N.m

9 Relative humidity:≤90%

10 Remote control distance:≤100M(in the open place)

11 IP Degree:IP54

12 Max length of arm: 6M




1.The running speed can be adjusted from 1.5s to 6s


2. Open the barrier gate by motor wheel when power off, automatically reset after power on


3. Curved crank arm three- link movement structure, the operation is stable


4. Wireless remote control control open/close


5. Auto reverse function(force adjustable)


6. Infrared photocells connector is available


7. Loop detector connector is available.


8. Well-integrated with car parking system equipment,with wire control(must be switch signal)


9. Connector for traffic light(AC220V,power less than 40W)






Installation, commissioning and use


Equipment installation

Please select the correct type of barrier gate according to the specifications of

the pace,and then fix the barrier cabinet with expansion bolts. After determined the position,the barrier gate foundation should be done according to the site conditions,and also make the cast-in-place basement for the non-concrete ground.


Adjust the Position of Barrier Arm

To adjust the position of the arm (for example, after exerting excessive force), please take the steps as below:

*open the barrier gate door and remove the cover
*loosen the two fasten screws of the DZ-1 on the boom shaft with the M12's Allen wrench, so that the boom can be re-positioned by hand.
*adjust the position of the boom (horizontal position).
*Use the hexagonal wrench to tighten the two fastening screws (72 Nm)


The parameter for selecting the balance tension spring


Arm Type The Length of arm Selection Spring



Straight Arm/Folding Arm 6M≥L>5M Extension Spring (ø5.5x280)+(ø4.5x280)
5M≥L≥4.5M (ø5.5x280)
4.5M>L≥3M (ø4.5x280)
Fence Arm 5M≥L≥4M (ø6.5x280)+(ø6.5x280)
4M>L≥3M (ø5.5x280)+(ø4.5x280)




1 pcs Vehicle Barrier gate
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers, 1 pc push button
1 pcs user manual



Q: What's the order process?

A: Follow the steps on below to complete your order.
- 1. Inquiry
Provide us detailed information about your requirements, and we'll recommend the suitable products accordingly.

-2. Quotation
Official quotation form with all clear specifications according to the order

-3. Invoice
Proforma Invoice will be issued once the quotation is confirmed.

-4. Payment
Payment shall be arranged if the invoice is confirmed. Full payment needed for sample order; Volume order need to 30% deposit to start order and 70% before delivery.

-5. Production

Sample order takes 3 to 5 days
Volume order takes about 5 to 10 days (depends on order quantity)

-6. Delivery
By sea, air or courier. Detailed picture of package will be provided upon the service you've chosen. Packaging info will be sent before delivery.
