600mm Channel 1s SS304 Bi Directional Swing Turnstiles For Office

600mm Channel 1s SS304 Bi Directional Swing Turnstiles For Office

  • 600mm Channel 1s SS304 Bi Directional Swing Turnstiles For Office
  • 600mm Channel 1s SS304 Bi Directional Swing Turnstiles For Office
600mm Channel 1s SS304 Bi Directional Swing Turnstiles For Office
Product Details:
Place of Origin: SHENZHEN, CHINA
Brand Name: SINOMATIC
Certification: CE/ ISO
Model Number: SN-SB03
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: CARTON/WOODEN
Delivery Time: 5-10 working days after payment received
Payment Terms: T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Product Type: Swing Arm Gate Opening Speed: 1s
Arm Material: SS304/ Acrylic Surface Finishing: Wire Drawing
Working Humidity: 0~95%RH Housing Material: SS304
High Light:

SS304 Bi Directional Swing Turnstile

,

1s Bi Directional Swing Turnstile

,

600mm Channel Office Pedestrian Turnstile

Full automatic bi-directional swing turnstiles security gate for office entrance



Function:



1. working method can be set by the buttons on the main panel



2. Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.



3.Anti-illegal in, anti-intrusion, auto close for reverse direction.



4. Anti-collision, gate closes when no valid signal is given.



5. Protection functions for gate, gate open to prevent motor from being damaged if there is outer force collision.



6. Gates can be synchronous



7.Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.



8. Reset function by photocells



9. Anti-pinch function by photocells



10.Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.



11. One way or two way control



12. Unit can be controlled and administered by remote control



13. Led lamp indicator



Extensible functions:



1. LED counter display 2



. Casing and gate size can be lengthened



3.Logic judgment by photocells (8 pair or 10 pairs)



4. Speech reminder



5.normal close or normal open adjustable



6. Light, sound alarm

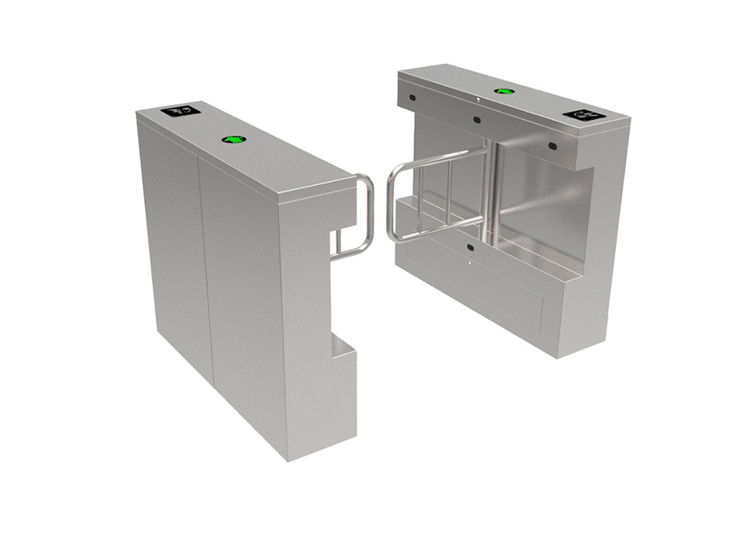

PRODUCT PHOTO



600mm Channel 1s SS304 Bi Directional Swing Turnstiles For Office 0





Specifications of swing arm barrier:



Description

Specification

Channel width 600mm (default)
Arm lenght 530mm (default)

Access device input voltage

Dry contact or 12V electrical level signal

or > 100ms 12V impulse signal, driving current > 10mA

Motor voltage

DC 24V (brush motor)

Max flow rate

30 person per minute

Gate swing angle

180 degree

Gate opening speed

1s

Reset time when power on

3s

Working temperature

-20°C~60°C

Package Wooden box



Application: Intelligent Vertical Swing Turnstile ---can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.



FQA

Q1. How about some special design?
That’s our advantage of design new gate or barrier according to your real situation to make different size, software and features.Video call available during design and communicate in time during this procedure.


Q2.Do you have agency for after-sales service?
Any question about delivery goods, you could find our sales anytime. For installation, we will offer instruction video to help and if you face any technical question, welcome to contact with us to have a face time to solve it.


Q3.What time do you need to delivery?
Commonly to say, 5-7 working days after payment could delivery for common orders, but it depends the order quantity. We could talk about this question before final payment.
